Eberspacher with two controllers

Sometimes users would like to add a second controller for operating their Eberspacher heater.

Typical uses are one controller in the main area with an additional controller near the bed or for switching between two controllers with different temperature settings for day or night use.

I had one in the cab and another in the back of my van, just extend an arm from under the covers, luxury on a cold morning!

It would be ideal to have both controllers active all the time with the Eberspacher responding automatically to changes made to either controller. However that would require fairly sophisticated circuitry beyond the capability of most of our users. I may try developing such a system later.

For the present we have to switch manually between the two controllers.


I used a 4 pole 2 position switch.  Also known as a 4p2w switch  On - On.

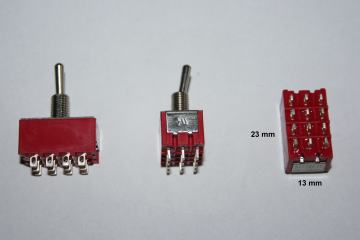

Ebay listing     Miniature Rocker Toggle Switch 2 Position 12 Terminals  £1.77 post free  Dec 2016

The switch terminals are fairly close together which means careful and neat soldering is essential.

Wire I had available in my spares box is fairly thick, thinner wire could be easier for some users.

Wire colours are chosen to be close to the controller colours but when a suitable colour is not available coloured sleeving like on the blue wire helps to identify the wire as grey/red.

Fitting heat shrink sleeving after soldering helps prevent close wires accidentally touching.




Wiring diagrams of switching circuits can intimidate some users so here I am starting with the simplest circuit and then adding more details in stages.

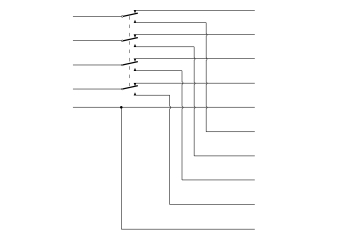

Switch circuit diagram with an additional non switched wire.

Non switched wires do not pass through the switch but are required as extra wires to connect the controller to the heater.

The black dot signifies a joint, crossing wires are not joined where they cross.

two_controllers05_big.jpg two_controllers04_big.jpg

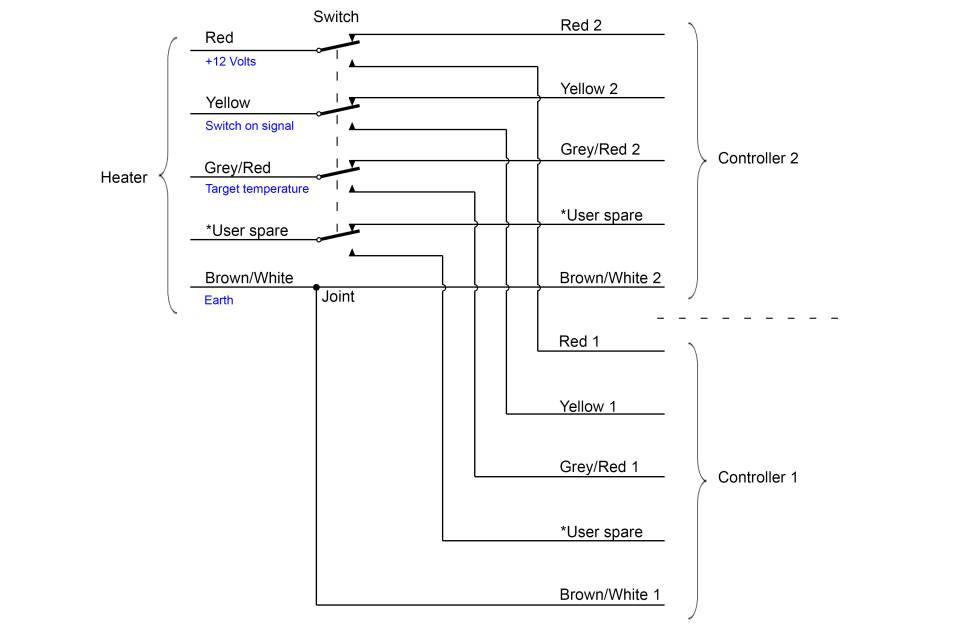

Switch circuit diagram.

The dotted line means all 4 sets of switch contacts are controlled by the switch lever.

Left 4 wires go to the heater.

Lower right 4 wires go to controller 1.

Upper right 4 wires go to controller 2.

Switch shown with controller 2 selected.

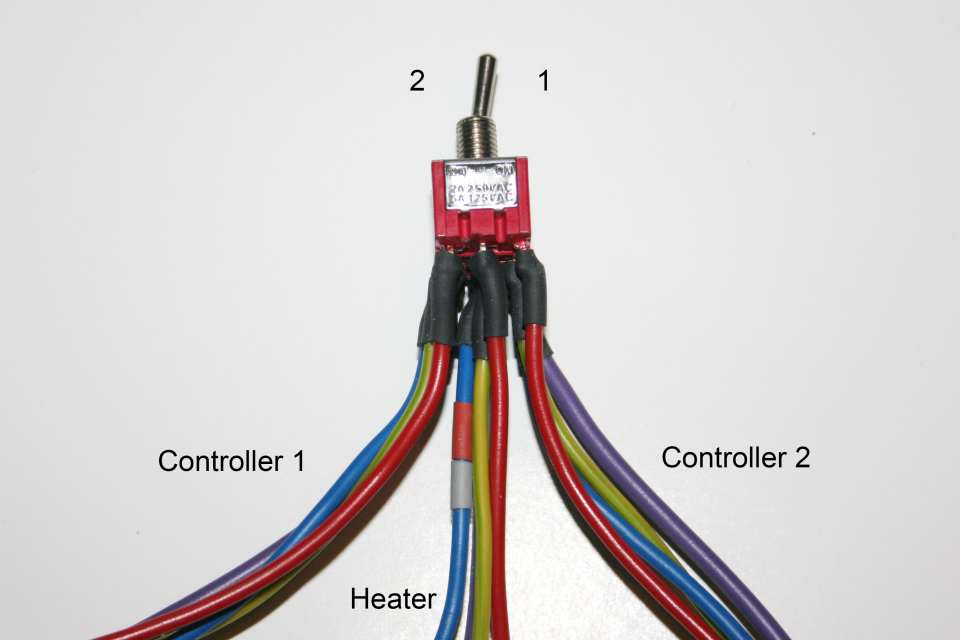

Wiring as previous picture.

two_controllers03_big.jpg two_controllers01_big.jpg

Basic controller switching circuit details.

The third switch element *User spare is normally not required.


Click on images for a larger image

Full circuit showing two controllers,

Mini controller and Rheostat.

Two optional wires, the blue/white diagnostic wire and the grey remote sensor wire added.

Click on image for larger picture to see details.

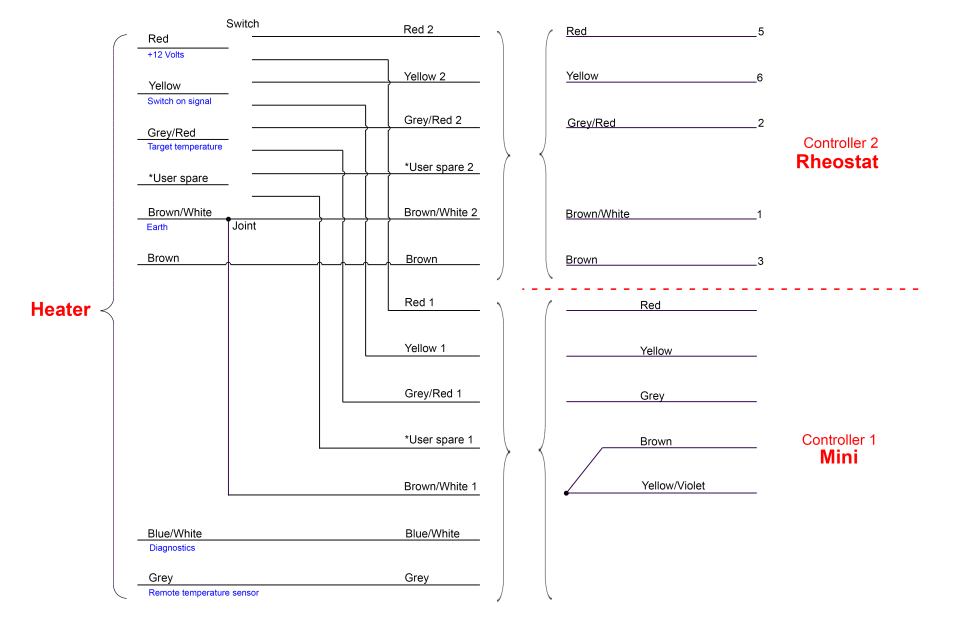

Full circuit showing two controllers,

701 timer and Rheostat.

Click on image for larger picture.

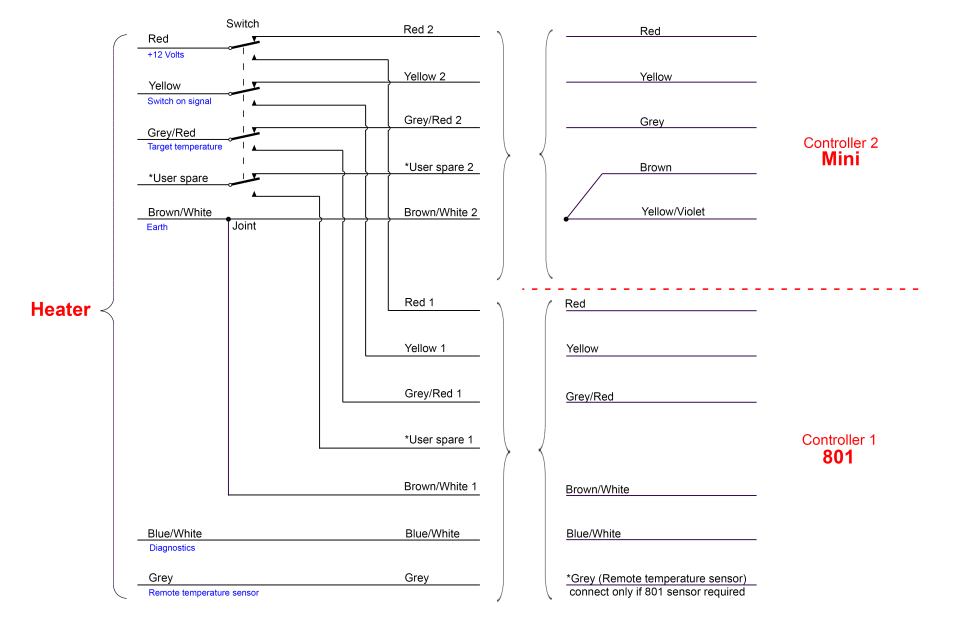

Full circuit showing two controllers,

801 and Mini controller.

Click on image for larger picture.

801, 701, Mini or Rheostat controllers can be used as Controller 1 or 2 and in any combination.

If you are unsure I can produce the circuit for any combination, email me.

Some older controllers can also be used providing they are compatible with the heater, identify their wiring and connect to the switch like a Rheostat.

Personally I prefer to avoid any of the EasyStart controllers. Additionally they use a different control method and are not shown here.

The above drawings are how I switch controllers for modern heaters like Airtronic D2,  D1LCC and D1LC.

Users with some electrical knowledge may want to change the wiring to suit their own need.

Some users will leave the red wire unswitched. The reason I personally switch the red (+12V) wire is I want the unused controller to be completely dead, otherwise you can end up adjusting the wrong one and not realise it is non operational.

Similarly to make the switching simpler some users will make the yellow unswitched, just connecting the two in parallel. That will probably work ok but it depends upon the controller circuit design. Both controllers have to be off for the heater to switch off.

The grey/red must be switched, only the selected controller can set the target temperature.

Similarly only one controller can be connected to the blue/white diagnostics wire and only one external temperature sensor can be connected to the grey.

The spare switch element *User spare can be wired to switch the blue/white or grey if needed, or it could switch power to a LED to indicate which controller is in use.
